FEATURES: SENSITIVE TO ALPHA, BETA & GAMMA ONE HAND OPERATION DIGITAL DISPLAY BUILT-IN SPEAKER ANTI SATURATION CIRCUIT LARGE 2'' PANCAKE DETECTOR BETA SHIELD/WINDOW PROTECTION

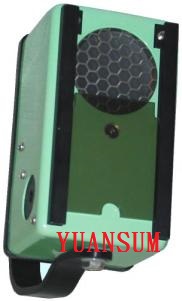

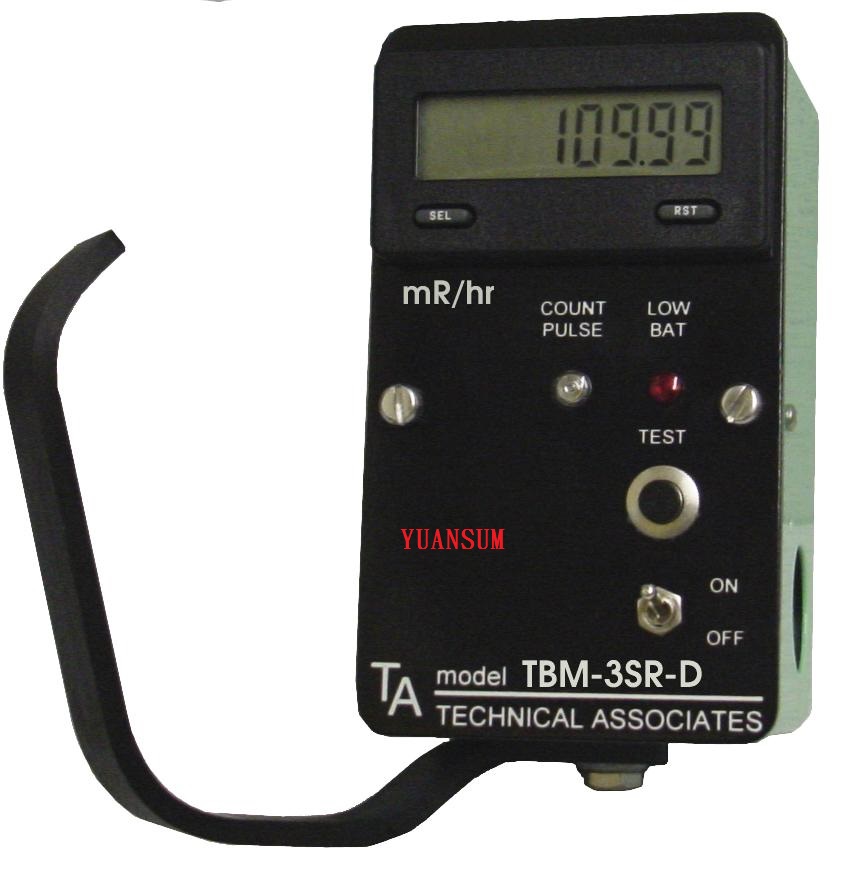

DESCRIPTION: Small Digital Ratemeter with built -in 2'' diameter pancake tube and speaker. Reads out in mR/hr (or counts per minute). Thin window recessed and protected by sturdy grill. Additionally TBM-3SR-D has sliding methacrylate beta shield which also acts as additional protection for thin GM tube window. Instrument will see alpha, beta, and gamma radiation. Anti saturation circuit will not fall below full scale in high fields. Tested to100 R/h.

APPLICATION: Its small size, light weight, one hand operation, and large detector area make this a very useful monitor for surveying bench tops or checking hands, clothes, and fingertips for almost any radioactive contamination. Excellent for Fire Department, Ambulance, Police, First Response, and U.S. Custom Personnel use for surveying people, cars, luggage, surface of rooms, etc...

Experts Recommend TBM-3SR for Fire Department use on every fire engine. SPECIFICATIONS:

Digital Display:     Large 6 digit LCD Display.     (Optional lighted LCD Display.) Ranges:     0.01 to 100.00 mR/hr.     (Optional: 0 to 100,000cpm.) Front Panel Switches:     Power: On/Off.     Battery Test. Detector: T-1190 ``pancake GM tube'' Diameter: 2 inches (5cm). Window Diameter: 1-3/4 inches (4.5 cm). Window Thickness: 1.5 mg/cm2 Quench Gas: Halogen for long life.

• Background: Typical < 50 cpm. Thin Profile of tube (13mm) gives low background.
• Efficiency: 100% for all Betas and Alphas that have the energy to penetrate the thin window. Gamma sensitivity nominal is 3,500 cpm/mR/hr (based on Cs¹³⁷).
• Physical dimensions: 3'' Wide * 5-1/4'' Long * 2-1/4'' High. Excluding knobs and handle.
  (7.6 cm * 13.3 cm* 6 cm)
• Beta Shield: Methacrylate 0.125'', 3.1 mm.
• Calibration: Single master calibration pot as well as individual cal pots for each range.
• Power: 9 volt ``transistor'' battery; Eveready 1222, or equivalent.
• Battery Life: 100 hours in normal operation.
• Handle:
      Swivel type, polished anodizedn aluminum.
      (Optional Detachable Handle TBM-3SR(DL) Upon Request)
• Weight: 22 oz. (625 grams).
• Optional:
  Lighted LCD Display.
  Detachable Handle TBM-3SR-D(DL).

See ``Beta Pancake Response'' specification (BETA PANCAKE RESPONSE)

Fire Fighters: TBM-3SR-D is available with the mR/hour Scale, a single Counts Per Minute Scale or mR/hr Scale, or Both Scales (Upon Request).
